• Tires, LT225/75R17E all-season, blackwall (Not available with CC30903 models. Requires (C7W) 11,400 lbs. GVWR. Includes 7 tires with (E63) Fleetside pickup box. Includes 6 tires with (ZW9) pickup box delete.)
• Fog lamps, front, halogen
• Windshield washer fluid system, heated
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver-and front passenger-side glass) (With Regular Cab models, includes rear window. With Extended Cab models, includes rear and rear quarter windows. With Crew Cab models or (C49) rear-window defogger, includes light-tinted rear window.)
• Lamps, Smoked Amber roof marker (Standard on (C7W) 11,400 lbs. (5171 kg) GVWR only. With (GED) 9700 lbs. GVWR (single rear wheel) or (C4M) 9900 lbs. GVWR (single rear wheel), not available with (YF5) California state emissions requirements.)
• Wheels, 6 - 17" x 6.5" (43.2 cm x 16.5 cm) 8-lug painted steel includes painted center caps and a steel spare (spare wheel will not cosmetically match the other 6 wheels) Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (Requires and only available with (C7W) 11,400 lbs. (5171 kg) GVWR (dual rear wheel).)
• Wheel trim, Chrome trim skins and chrome center caps (Requires and only available with (C7W) 11,400 lbs. (5171 kg) GVWR (dual rear wheel))
• Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered)
• Bumper, front chrome
• Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete)
• Air dam, Black
• Moldings, bodyside, body-colored
• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Mirrors, outside heated power-adjustable, Black, manual-folding (Requires (C7W) 11,400 lbs. (5171 kg) GVWR.)
• Door handles, color-keyed
• Wipers, front intermittent wet-arm with pulse washers

• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock
• Audio system feature, Bose premium speaker system with sub-woofer in center console
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media (Requires Crew Cab models.)
• XM Satellite Radio. With a wide variety of programming, XM has something to excite any driver. Whether you want to be entertained or informed, to laugh, think, or sing, XM has the perfect channel for you - coast-to-coast, and in digital-quality sound. 3 trial months - no obligation (Available in the 48 contiguous United States. Required $12.95 monthly subscription sold separately after 3 trial months. All fees and programming subject to change. Subscription subject to customer agreement. For more information, visit gm.xmradio.com. Not available with (UE0) OnStar, delete.)

• Seats, front bucket includes 10-way power driver and front passenger seat adjusters, 2-way power lumbar control, heated seat cushions and seatbacks, 2-position driver memory, adjustable outboard head restraints, floor console and storage pockets
• Ebony, Ultrasoft leather-appointed seat trim
• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
• Remote vehicle starter system includes Remote Keyless Entry (Remote Keyless Entry does not lock/unlock tailgate when (PDF) EZ-Lift Tailgate Package is ordered)
• Steering wheel controls, mounted audio controls
• Cruise control, electronic with set and resume speed, located on steering wheel
• Door locks, power
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats)
• Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
• Seat adjuster, driver 10-way power
• Seat adjuster, front passenger 10-way power
• Seats, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)
• Seat trim, Custom Leather-appointed
• Console, floor with storage compartment, 2 auxiliary power outlets and dual cup holders
• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, power with driver Express-Down (Includes front passenger Express-down.)
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• Brakes, 4-wheel antilock, 4-wheel disc
• Daytime Running Lamps, with automatic exterior lamp control
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock (requires power locks), OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist and Remote Horn and Lights (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. If the order type is FDR, (UE0) OnStar delete will be forced on. Visit onstar.com for system limitations and details. Not available with a ship-to of Puerto Rico or the Virgin Islands. Remote Door Unlock requires (AU3) power door locks.)
• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owners Manual and child safety seat instructions for more safety information)

ENGINE, DURAMAX 6.6L TURBO DIESEL V8

• B5-Diesel compatible (365 hp [271.7 kW] @ 3200 rpm
• 660 lb-ft of torque [894.6 N-m] @ 1600 rpm) Includes (TUV) heavy-duty dual
• 730 cold-cranking-amp battery and (K05) engine block heater)

• ENGINE DURAMAX 6.6L TURBO DIESEL V8 B5-Diesel compatible (365 hp [271.7 kW] @ 3200 rpm 660 lb-ft of torque [894.6 N-m] @ 1600 rpm) Includes (TUV) heavy-duty dual 730 cold-cranking-amp battery and (K05) engine block heater)
• UNIVERSAL HOME REMOTE
• EZ-LIFT TAILGATE PACKAGE includes (A60) locking tailgate and (PPA) EZ-Lift tailgate
• ENGINE BLOCK HEATER
• REAR AXLE 3.73 RATIO
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive electronic engine grade braking and tow/haul mode
• TRAILERING WIRING PROVISIONS FOR CAMPER FIFTH WHEEL AND GOOSENECK TRAILER includes additional 8-way wiring harness routed to front of pickup box
• TIRES LT225/75R17E ALL-SEASON BLACKWALL (STD) Includes 7 tires with (E63) Fleetside pickup box. Includes 6 tires with (ZW9) pickup box delete.)
• BRAKE CONTROLLER INTEGRATED TRAILER
• LTZ PREFERRED EQUIPMENT GROUP includes standard equipment
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION BLACK integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)
• SEATS FRONT BUCKET includes 10-way power driver and front passenger seat adjusters 2-way power lumbar control heated seat cushions and seatbacks 2-position driver memory adjustable outboard head restraints floor console and storage pockets (STD)
• EBONY/LIGHT CASHMERE ULTRASOFT LEATHER-APPOINTED SEAT TRIM
• SUMMIT WHITE
• GVWR 11 400 LBS. (5171 KG) with dual rear wheels (STD)
• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE 6-DISC IN-DASH CD CHANGER seek-and-scan digital clock auto-tone control and Radio Data System (RDS)
• BATTERY HEAVY-DUTY DUAL 730 COLD-CRANKING AMPS MAINTENANCE-FREE with rundown protection and retained accessory power
• TIRE SPARE LT225/75R17E ALL-SEASON BLACKWALL includes 17 (43.2 cm) steel spare wheel and spare tire carrier
• Dual Rear Wheels
• Locking/Limited Slip Differential
• Tow Hitch
• Rear Wheel Drive
• Tow Hooks
• Power Steering
• Dual Rear Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Fog Lamps
• Privacy Glass
• Steel Wheels
• Wheel Covers
• Automatic Headlights
• Heated Mirrors
• Power Mirror(s)
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Premium Sound System
• Rear Seat Audio Controls
• Power Outlet
• Satellite Radio
• Requires Subscription
• Power Driver Seat
• Power Passenger Seat
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Leather Seats
• Climate Control
• Multi-Zone A/C
• A/C
• Keyless Entry
• Power Door Locks
• Remote Engine Start
• Steering Wheel Audio Controls
• Cruise Control
• Power Door Locks
• Floor Mats
• Rear Defrost
• Power Driver Seat
• Power Passenger Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• Leather Seats
• Power Outlet
• Leather Steering Wheel
• Adjustable Steering Wheel
• Power Windows
• Power Outlet
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• ABS
• 4-Wheel Disc Brakes
• Daytime Running Lights
• Automatic Headlights
• Telematics
• Requires Subscription
• Driver Air Bag
• Passenger Air Bag

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Total Cooling System Capacity (qts): 16.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4200
• Gross Axle Wt Rating - Rear (lbs): 8200
• Curb Weight - Front (lbs): 3451
• Curb Weight - Rear (lbs): 2818
• Gross Vehicle Weight Rating Cap (lbs): 11400
• Gross Combined Wt Rating (lbs): 23500
• Gross Combined Wt Rating (lbs): 18500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1395
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4050
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 8200
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9200
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.34
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.8
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 1.2
• Tires
• Front Tire Order Code: QBD
• Rear Tire Order Code: QBD
• Spare Tire Order Code: ZBD
• Front Tire Size: LT225/75R17E
• Rear Tire Size: LT225/75R17E
• Spare Tire Size: LT225/75R17E
• Front Tire Capacity (lbs): 2145
• Rear Tire Capacity (lbs): 2072
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 167.0
• Length, Overall w/o rear bumper (in): 258.7
• Width, Max w/o mirrors (in): 95.9
• Height, Overall (in): 76.0
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 150.9
• Cab to Axle (in): 55.5
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.4
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 9.3
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.2
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.7
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.3
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 75.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.3
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.6
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 65.5
• Summary

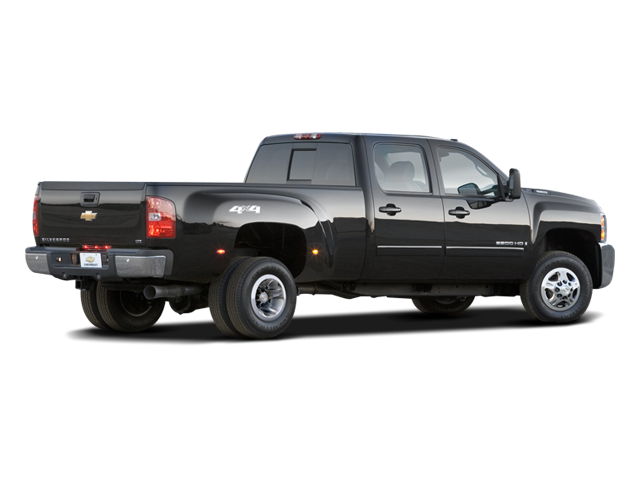

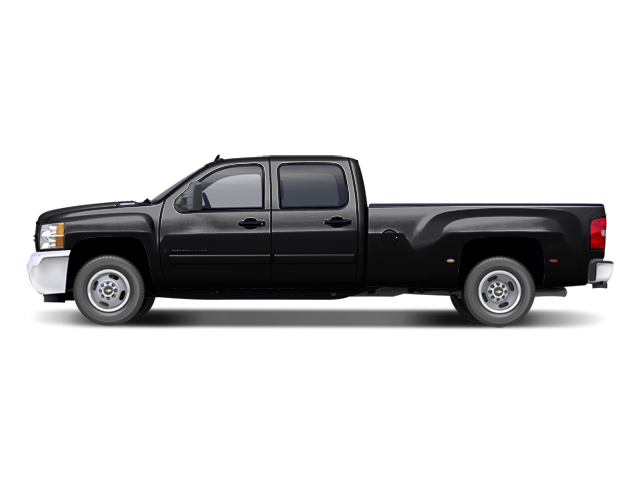

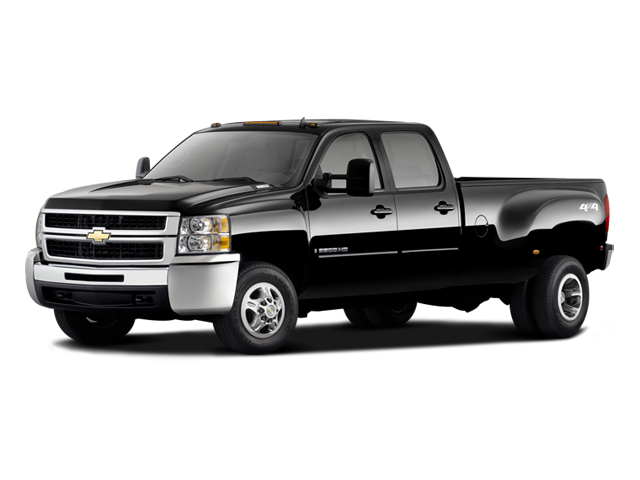

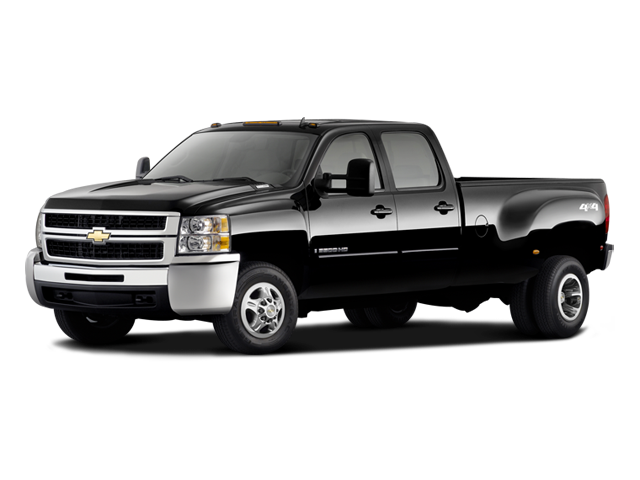

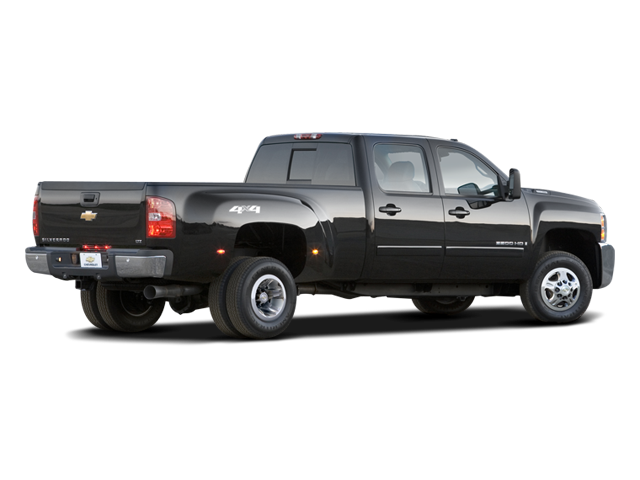

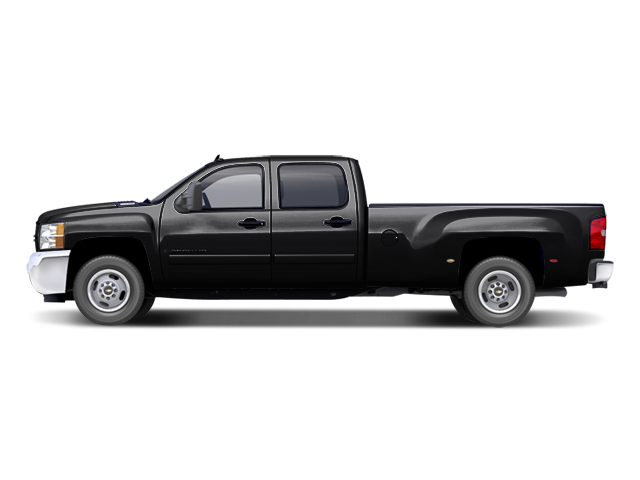

• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Crew Cab 8' Fleetside
• Body Code: E63
